Processing Range
Processing Materials
Workflow
Processing material Shape: Round bar, hexagon bar, seamless hollow rod, square bars
Or other shaped timber is depending on the product requirements.

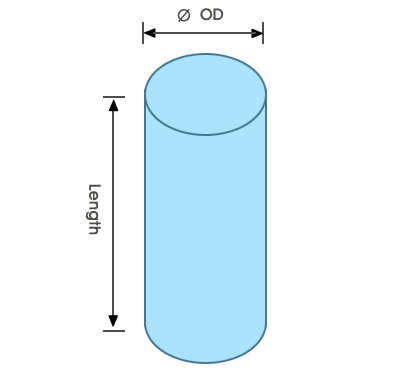

Maximum machining diameter:
Round bars: Ø2.0mm ~ Ø42.0mm
Hexagon bars: Hex 2.0mm ~ Hex 32.0mm
Processing length:
Maximum processing length: 600mm
If the diameter of which exceeds Ø13.0mm, then the processing length up to 100mm or depending on the product.
Machining accuracy:
Swiss Type CNC Lathe 0.01 mm
Automatic lathes 0.05 mm
Processing number :
Production: Set a minimum amount of a single product 1,000 pcs / batch
Sample: Production sample quantity 2 pcs
